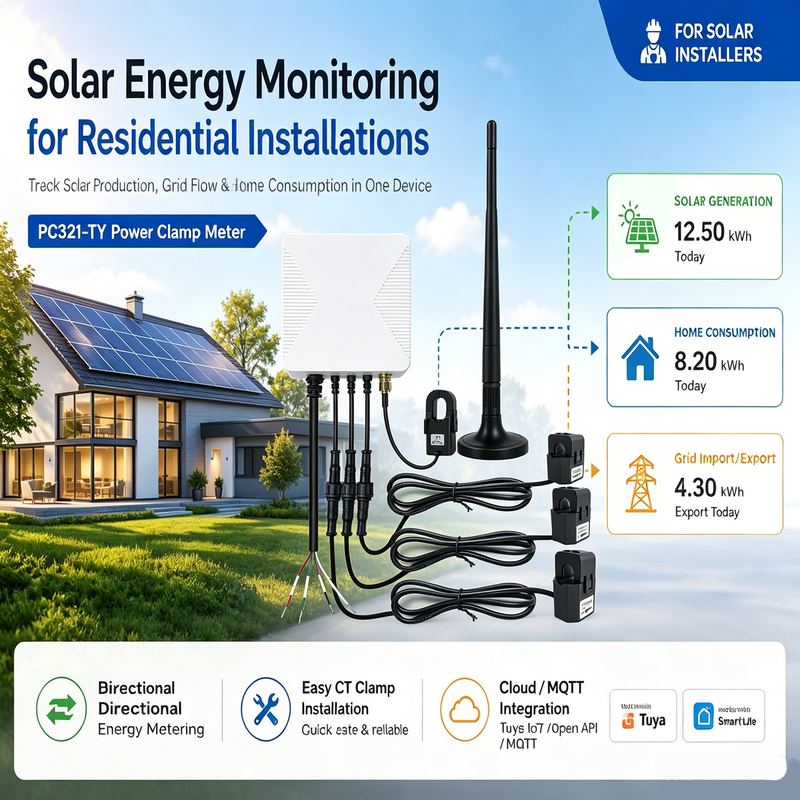

PC321-W-TY Single/Three-Phase WiFi Smart Energy Clamp
PC321-W-TY
Tuya-compatible WiFi smart energy clamp for single-phase, split-phase and three-phase systems. Three CT clamps up to 750A, bidirectional measurement for solar PV, real-time monitoring via Tuya Smart / Smart Life apps.
Overview
PC321-W-TY helps you monitor the amount of electricity Consumed and Produced in your three-phase power system by connecting the clamps on to the power cables. It is also compatible with single phase and split phase.
Key Features
- Tuya compliant. Support automation with other Tuya device by export and import of grid or other energy values
- Single Phase, Split Phase, 3-Phase 4-Wire electricity system compatible
- Remotely monitor whole home Energy with three current transformers
- Wireless communication via Wi-Fi 2.4GHz
- Real-time Voltage, Current, PowerFactor, ActivePower, Frequency measurement
- Bidirectional measurement: Energy Usage / Solar Production
- Historical data can be displayed and exported in the App
- External antenna prevents signal from being shielded
Packaging & Delivery
- Selling Units: Single item
Specifications
| Accuracy | ±1% (Voltmeters); Ammeters: ±1% (1-80A) / ±2% (0-1A) depending on CT rating |
|---|---|
| Voltage | 90~277 Vac 50/60Hz (RMS per phase) |
| Current | 80A~750A (CT dependent) |
| Frequency | 50/60Hz |
| Power Supply | <2W |
| Protocol | WiFi 802.11 b/g/n @ 2.4GHz + BLE (pairing) |
| Dimensions | 86(W) x 37(D) x 86(H) mm |
| Mounting | Wall mounting (default); DIN rail mounting (optional) |
| Operating Temp | -20℃ to +55℃ (≤90% non-condensing) |
| Measured Parameters | Voltage, Current, Power Factor, Frequency, Active Power |
| Reporting Cycle | Every 15 seconds |
| Certification | CE |
| Place of Origin | China |
| Brand | OWON |
| Supported Systems | Single-Phase, Split-Phase, Three-Phase 4-Wire (3-Phase 3-Wire & Delta not supported) |
| Clamp Inner Dimension | 80A (default): Ø10mm; 120A: Ø16mm; 200A: Ø20mm; 300A: Ø24mm; 500A: Ø36mm; 750A: Ø51mm |
| Ammeter Accuracy | 80A CT: ±1% (1-80A), ±2% (0-1A); 120A CT: ±1% (2-120A), ±2% (0-2A); 200A CT: ±1% (2-200A), ±2% (0-2A); 300A CT: ±1% (6-300A), ±2% (2-6A), ±5% (0-2A); 500A CT: ±1% (6-500A), ±2% (2-6A), ±5% (0-2A); 750A CT: ±1% (6-750A), ±2% (2-6A), ±5% (0-2A) |
| Wi-Fi | 802.11 b/g/n @ 2.4GHz |
| BLE | For Pairing |
Key Benefits
Single, Split & 3-Phase Compatible
One clamp meter covers single-phase, split-phase and three-phase 4-wire systems — three CT clamps monitor the whole installation.
Bidirectional Measurement
Measures both energy consumed and produced — ideal for solar PV self-consumption and net-metering setups.
WiFi + Tuya Ecosystem
2.4GHz WiFi with BLE-assisted pairing; monitor and control in real time via Tuya Smart / Smart Life apps.
External Magnetic Antenna
Keeps the signal reliable even inside metal distribution boxes — no shielding interference.
Ideal For
Common deployment scenarios where PC321-W-TY Single/Three-Phase WiFi Smart Energy Clamp delivers the most value.
Solar PV Self-Consumption
Bi-directional metering tracks solar generation, grid import/export and household consumption in real time.
Whole-Home Energy Monitoring
Three CT clamps monitor total household consumption across single, split or three-phase supplies via the Tuya app.
Split-Phase & 3-Phase 4-Wire Installations
Covers North American split-phase and standard three-phase four-wire systems (3-wire & Delta not supported).
Residential & Commercial Submetering
Non-invasive CT clamp installation from 80A to 750A, wall or DIN-rail mounting — no rewiring required.
HVAC & EV Charging Circuits
CT range and 15-second reporting cycle suit HVAC systems and EV charger energy management.
Solar Installer Commissioning
Verify PV system performance and validate inverter output during installation using real-time clamp data.
Frequently Asked Questions
Does the Smart Power Meter (PC321) support both single-phase and three-phase systems?
What CT clamp ranges are available?
Is this WiFi energy meter Tuya-compatible?
Can the PC321 integrate with BMS/EMS through MQTT?
Does the PC321 support bidirectional metering?
