PC472-W-TY/N Single-Phase WiFi Power Meter
PC472-W-TY/N
Tuya-compatible single-phase WiFi power meter with two CT clamps and bidirectional measurement. 15-second reporting, CT options 20A-300A, 35mm DIN rail mounting.
Overview
PC472-W-TY/N helps you monitor the amount of electricity Consumed and Produced in your single-phase power system by connecting the clamp on to the power cable.
Key Features
- Tuya compliant. Support automation with other Tuya device
- Single-Phase electricity system Suitable

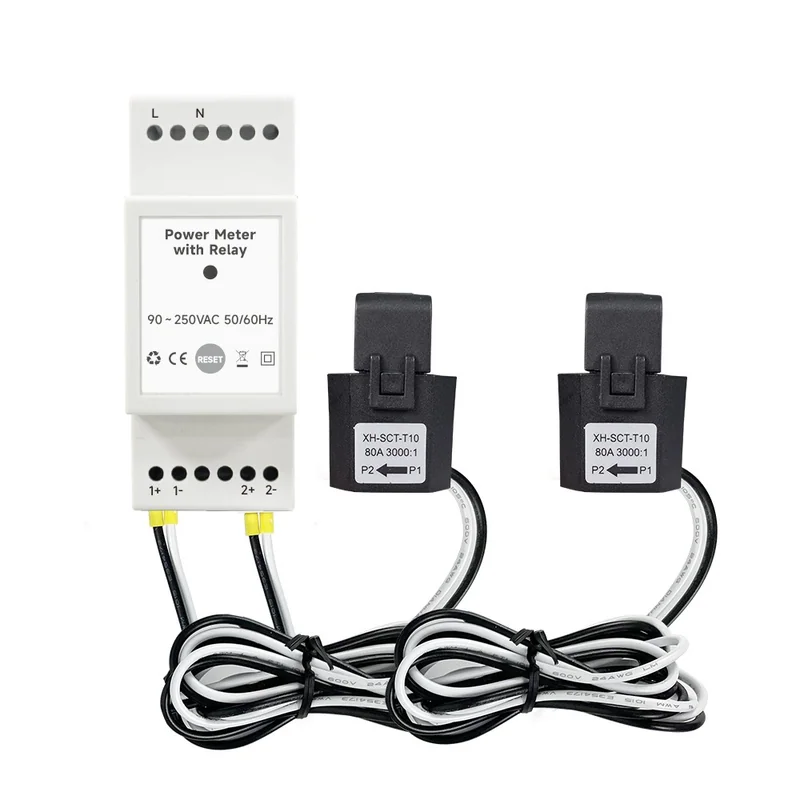

- Remotely monitor a single-phase circuit/load, with 2 current transformers
- Wireless communication via Wi-Fi 2.4GHz
- Real-time Voltage, Current, PowerFactor, ActivePower, Frequency, measurement
- Bidirectional measurement: Energy Usage / Solar Production
- Historical data can be displayed and exported in the App
Specifications
| Accuracy | ±1% (Voltmeters) |
|---|---|
| Ammeter Accuracy | 20A CT: ±1% (1-20A), ±2% (0-1A); 80A CT: ±1% (1-80A), ±2% (0-1A); 120A CT: ±1% (2-120A), ±2% (0-2A); 200A CT: ±1% (2-200A), ±2% (0-2A); 300A CT: ±1% (6-300A), ±2% (2-6A), ±5% (0-2A) |
| Voltage | 90~277 Vac 50/60Hz |
| Current | 20A~300A (CT dependent) |
| Frequency | 50/60Hz |
| Power Supply | <2W |
| Protocol | WiFi 802.11 b/g/n @ 2.4GHz + BLE (pairing) |
| Wi-Fi | 802.11 b/g/n @ 2.4GHz |
| BLE | For Pairing |
| Antenna | Internal antenna |
| Mounting | 35mm DIN rail mounting |

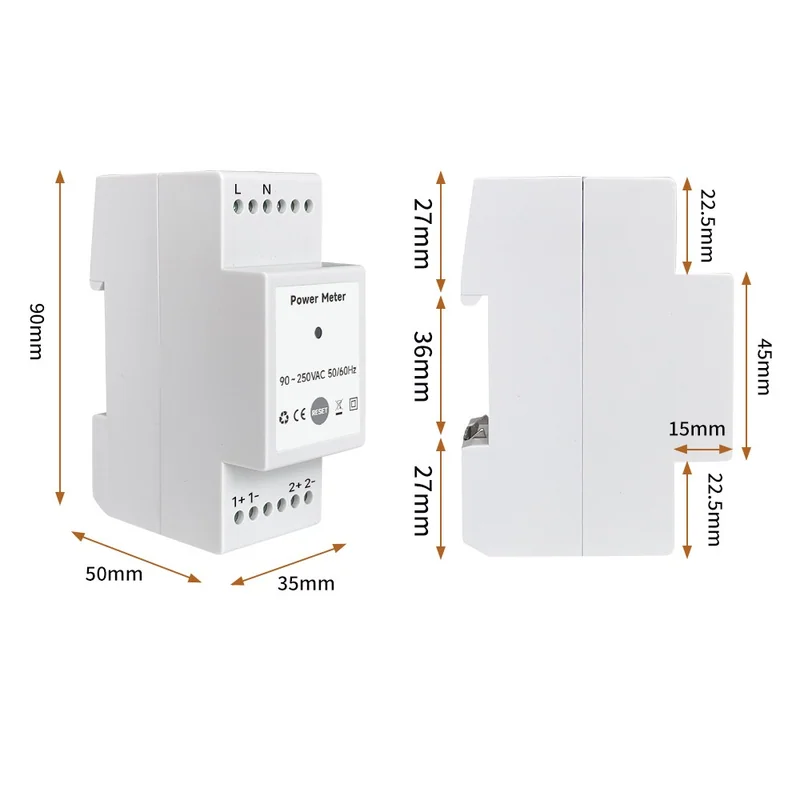

| Dimensions | 35(W) x 65(D) x 90(H) mm |
| Operating Temp | -20℃ to +55℃ (≤90% non-condensing) |
| Measured Parameters | Voltage, Current, Power Factor, Active Power, Frequency; Energy Usage / Solar Production |
| Reporting Cycle | Every 15 seconds |
| Clamp Inner Dimension | 20A (optional): Ø5mm; 80A (default): Ø10mm; 120A (optional): Ø16mm; 200A (optional): Ø20mm; 300A (optional): Ø24mm |
| Certification | CE |
| Place of Origin | China |
| Brand | OWON |
Key Benefits
Dual-CT Two-Load Monitoring
Two current transformers monitor a single-phase circuit or two loads from one device.
Bidirectional Measurement
Tracks energy usage and solar production — ideal for single-phase PV self-consumption.
WiFi + Tuya Ecosystem
WiFi 2.4GHz with BLE pairing; monitor and automate via the Tuya platform.
Historical Data Export
Historical data viewable and exportable in the App for reporting and analysis.
Ideal For
Common deployment scenarios where PC472-W-TY/N Single-Phase WiFi Power Meter delivers the most value.
Solar PV Self-Consumption
Bidirectional measurement tracks generation and consumption on single-phase systems.
Whole-Home Energy Monitoring
Single-phase household monitoring with two CT clamps on the main feed.
Two-Load Submetering
Monitor two separate circuits from one clamp meter.
Residential Smart Home
Tuya App with historical data export for daily, weekly and monthly analysis.
Commercial & OEM Projects
Compact DIN-rail mounting suits distribution boxes and OEM integration.
Energy Analytics
15-second reporting feeds energy analytics and management platforms.
Frequently Asked Questions
What electrical systems does the PC472-W-TY/N support?
Can it monitor solar energy?
How often does it report data?
What CT clamp ranges are available?
Can I view historical energy data?
