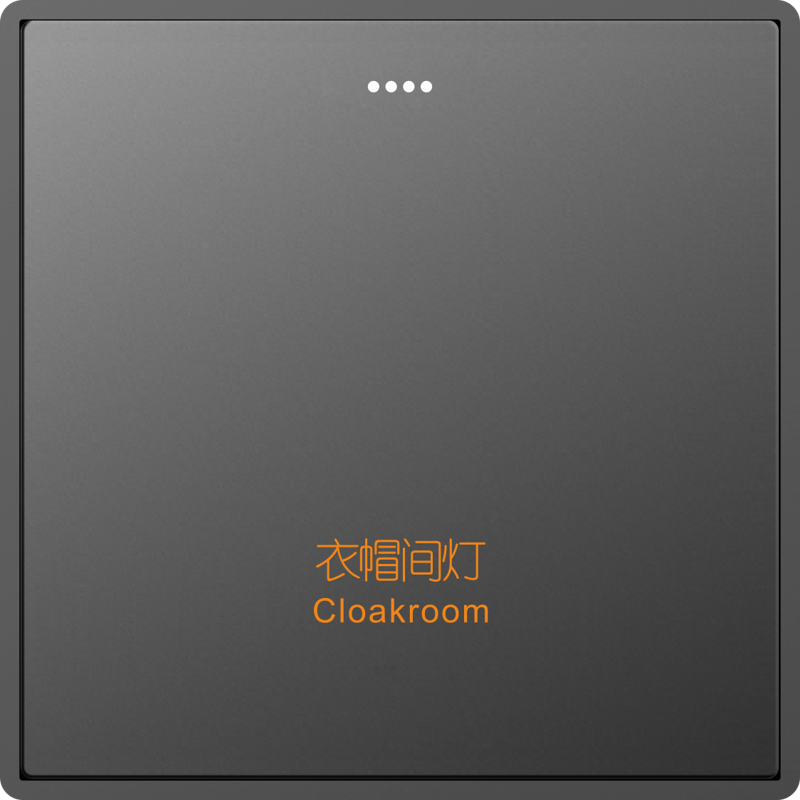

SLC600-D
Dimmer Switch
ZigBee 3.0 dimmer switch that controls on/off and brightness of up to 2 dimmable devices, available in 3 colors.
Overview
The Dimmer Switch SLC600-D is designed to control your device On/Off and adjust the brightness. You can bind it with multiple devices and control them at the same time.
Key Features
- ZigBee 3.0 compliant, works with any standard ZigBee hub
- Supports up to 2 dimmable devices to pair
- Controls multiple devices at the same time
- 86-type wire junction box installation
- Available in 3 colors
- 3-wire lighting systems
Specifications
| Protocol | ZigBee 3.0 (2.4GHz IEEE 802.15.4) |
|---|---|
| RF Range | Outdoor/indoor: 100m / 30m |
| Antenna | Internal PCB Antenna (TX power 19dB) |
| Voltage | 100~250 Vac 50/60 Hz |
| Power Consumption | < 1W |
| Paired Devices | Up to 2 dimmable devices |
| Compatible Systems | 3-wire lighting systems |
| Dimensions | 92(L) x 92(W) x 35(H) mm; in-wall 60(L) x 61(W) x 24(H) mm |
| Operating Temp | -20℃ ~ +50℃ (≤ 90% non-condensing) |
| Colors | 3 colors |
Key Benefits
On/Off + Brightness
Dims and switches connected lighting devices.
Bind 2 Devices
Controls up to 2 dimmable devices at once.
3 Colors
Match the switch to the décor.
ZigBee 3.0
Works with any standard ZigBee hub.
Ideal For
Common deployment scenarios where Dimmer Switch delivers the most value.
Hotel Rooms
Smart dimming control with stylish switch plates.
Living Rooms
Dim lights from a wall-mounted switch.
Multi-Device Setups
Bind two dimmable devices to one switch.
Retrofit Projects
86-type junction box install.
OEM / ODM Projects
OEM branding and ODM development available.
ZigBee Smart Homes
Works with any standard ZigBee hub.
Frequently Asked Questions
What does the SLC600-D do?
How many devices can it pair?
Which lighting systems does it support?
What are the color options?
Which ZigBee profile does it use?
