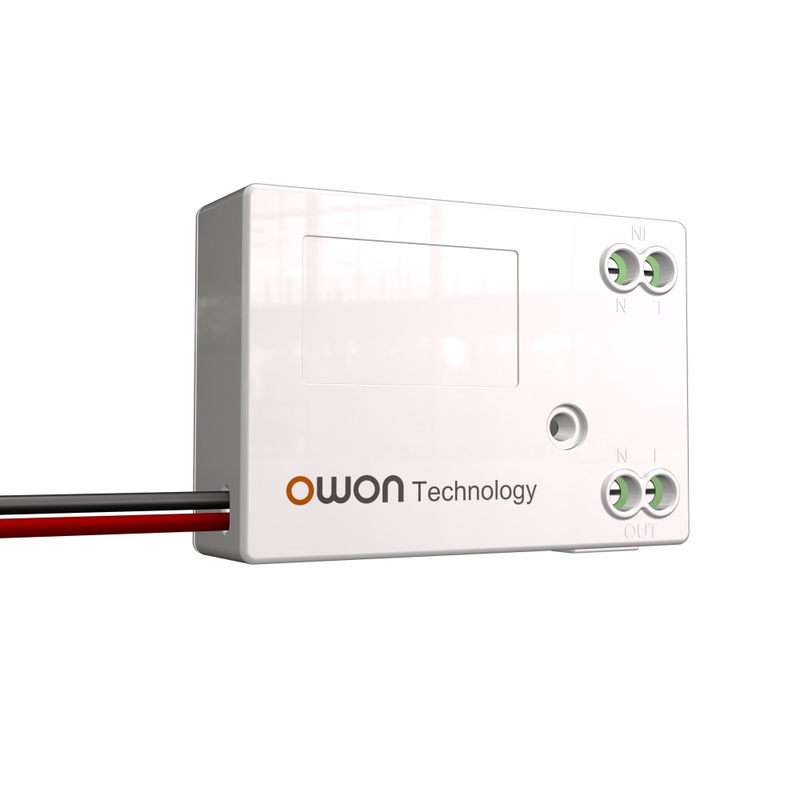

SLC601 ZigBee Smart Relay Module
SLC601
ZigBee HA1.2 smart relay module that upgrades existing lighting to remote control โ insert into the power line, no rewiring.
Overview
The SLC601 is a smart relay module that allows you to turn the power on and off remotely as well as set on/off schedules from the mobile app.
Key Features
- ZigBee HA1.2 compliant
- Upgrades existing lighting to a remote control lighting system
- Easy installation by inserting the Power Relay into the existing power line
- Extra control cables available to integrate with existing physical switch
- Compact 55.3 x 39 x 17.7mm module, CE certified
Specifications
| Protocol | ZigBee HA1.2 (2.4GHz IEEE 802.15.4) |
|---|---|
| RF Range | Outdoor/indoor: 100m / 30m |
| Antenna | Internal PCB Antenna |
| Voltage | 100~240 Vac 50/60 Hz |
| Power Consumption | < 0.7W |
| Max. Load Current | 5A resistive: 500W incandescent/halogen, 100W fluorescent, 60W LED |
| Operating Temp | -20โ ~ +55โ (โค 90% non-condensing) |
| Dimensions | 55.3(L) x 39(W) x 17.7(H) mm |
| Weight | 42g |
| Certification | CE |
Key Benefits
Lighting Retrofit
Inserts into the existing power line โ no rewiring needed.
Existing Switch Integration
Extra control cables connect to your current wall switch.
Scheduling
Set on/off schedules from the mobile app.
ZigBee HA1.2
Works with any standard ZHA hub.
Ideal For
Common deployment scenarios where SLC601 ZigBee Smart Relay Module delivers the most value.
Home Lighting Retrofit
Turn existing lights into smart lights without rewiring.
Hotel Room Control
Remote and scheduled lighting for guest rooms.
Small Offices
Affordable smart relay for individual circuits.
Switch-Panel Upgrades
Keep the physical switch while adding app control.
OEM / ODM Projects
OEM branding and ODM development available.
ZigBee Smart Homes
Works with any ZHA hub.
Frequently Asked Questions
What does the SLC601 do?
How is it installed?
What load can it handle?
Which ZigBee profile does it use?
Can it integrate with my existing switch?
