WSP406-Z-TY

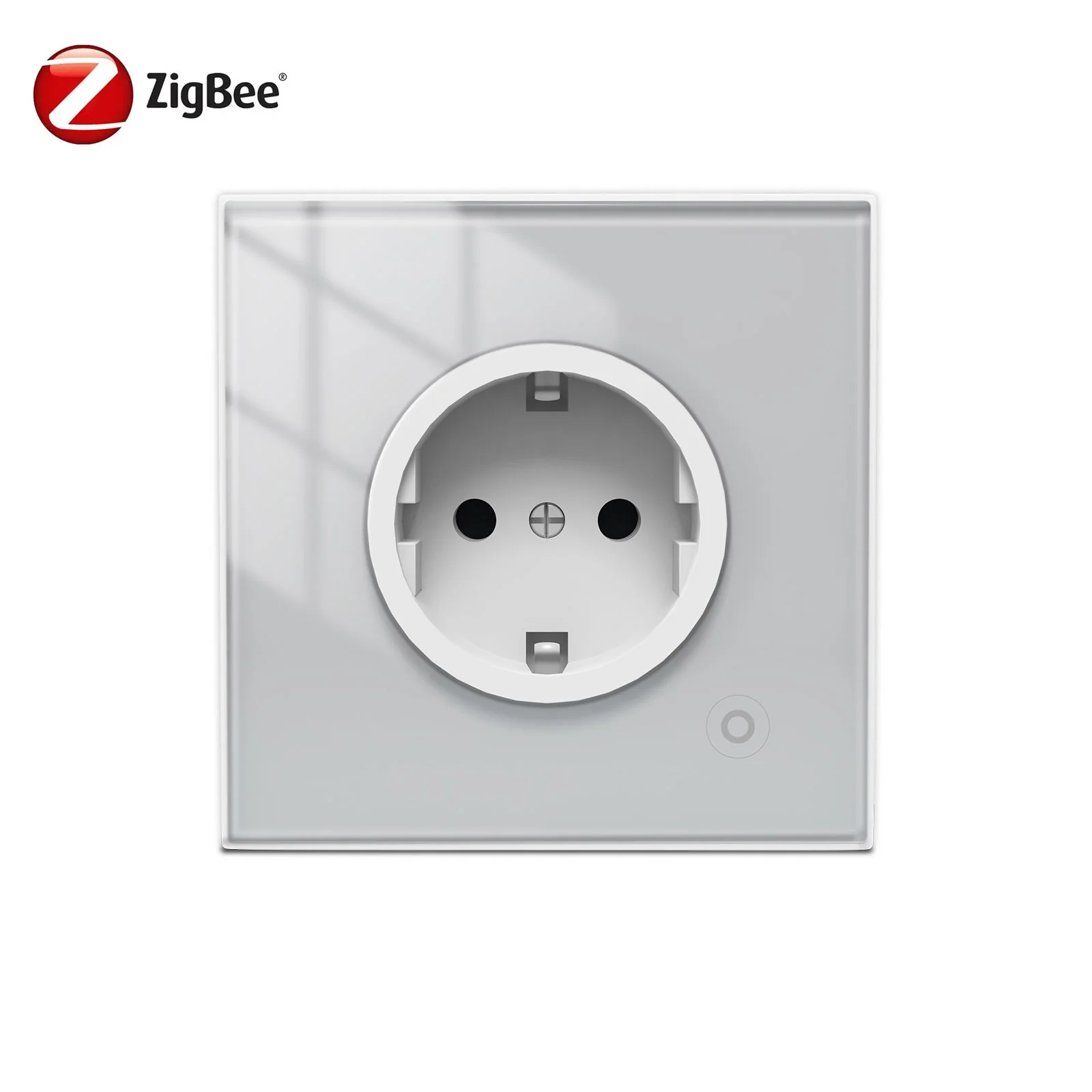

ZigBee Wall Socket
Tuya-compatible ZigBee 3.0 wall socket — remote on/off, energy monitoring and scheduling for home appliances.
Overview
The WSP406 Wall Socket allows you to remotely control your home appliances and set schedules to automate via mobile phone. It also helps users to monitor the energy consumption remotely.
Key Features
- ZigBee 3.0 compliant (Tuya ecosystem)
- Remote on/off control, ideal for home appliance control
- Physical button to switch on/off manually
- Energy consumption measuring
- Enables scheduling for automatic switching
- Extends the range and strengthens ZigBee network communication
Specifications
| Protocol | ZigBee 3.0 (2.4GHz IEEE 802.15.4) |
|---|---|
| RF Range | Outdoor: 100m (open area) |
| Antenna | Internal PCB Antenna |
| Voltage | 95~245 Vac 50/60 Hz |
| Max. Load Current | 16A |
| Max. Load Power | 3000W |
| Power Consumption | < 1 W |
| Accuracy | ≤ 100 W within ±2 W (maximum 1 min when power change < 1 W) |
| Material | ABS flame retardant + glass panel |
| Dimensions | 86 (L) x 86 (W) x 43 (H) mm |
| Measured Parameters | Energy consumption measuring |
| Mounting | In-wall (UK back box) |
| Control | Remote On/Off; physical button; scheduling |
| Ecosystem | Tuya ZigBee — works with Tuya gateway and app |
Key Benefits
In-Wall Socket
Smart wall socket with 13A capacity.
Energy Monitoring
Tracks consumption of the connected appliance.
Tuya Ecosystem
Pairs with Tuya gateway and app.
Scheduling
Automatic on/off switching by schedule.
Ideal For
Common deployment scenarios where ZigBee Wall Socket delivers the most value.
Tuya Smart Homes
Wall sockets in the Tuya ecosystem.
Hotel Rooms
Smart sockets with energy monitoring.
Apartments
In-wall control without external plugs.
Energy Programs
Track consumption and schedule off-hours.
OEM / ODM Projects
OEM branding and ODM development available.
Tuya Gateway Users
Pairs with Tuya gateway and app.
Frequently Asked Questions
What can the WSP406-Z-TY control?
Does it measure energy?
What is the maximum load?
Which ecosystem does it belong to?
Does it strengthen the ZigBee network?
