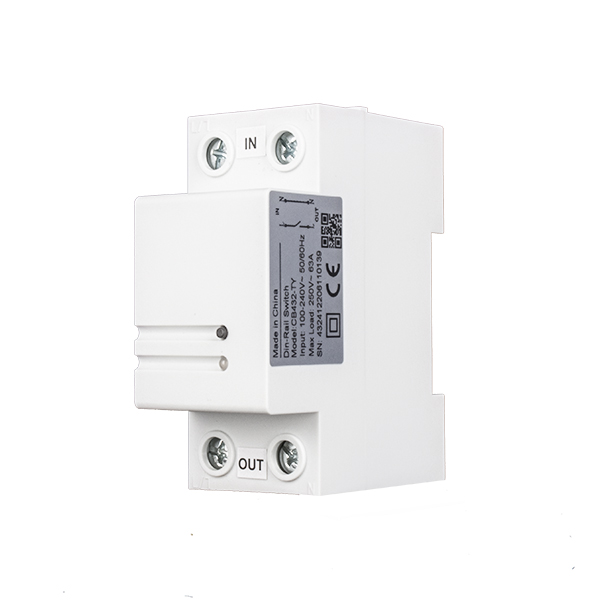

CB432 Din-rail Relay with Power Meter
CB432
ZigBee 3.0 din-rail relay with calibrated W/kWh metering â on/off control and real-time energy usage in one module.
Overview
The Din-Rail Relay CB432 is a device with wattage (W) and kilowatt hours (kWh) measurement functions. It allows you to control On/Off status and check real-time energy usage via the mobile App.
Key Features
- ZigBee 3.0, works with any standard ZigBee hub
- Measures instantaneous and accumulative energy consumption (W and kWh)
- Calibrated metering: â€100W within ±2W, >100W within ±2%
- Schedule devices to automatically power on and off
- 32A or 63A load models
- Extends the range and strengthens ZigBee network communication
Specifications
| Protocol | ZigBee 3.0 (2.4GHz IEEE 802.15.4) |
|---|---|
| Relay Type | Single break |
| Voltage | 100~240 Vac 50/60 Hz |
| Power Consumption | < 1W |
| Accuracy | †100W: ±2W; > 100W: ±2% |
| Max. Load Current | 32A or 63A models |
| Measured Parameters | W and kWh metering; real-time energy usage |
| Operating Temp | -20â ~ +55â (†90% non-condensing) |
Key Benefits
Relay + Meter
On/off control plus calibrated W/kWh metering in one din-rail module.
Calibrated Accuracy
±2W within 100W, ±2% above 100W.
32A / 63A Models
Choose the rating that fits the circuit.
ZigBee 3.0
Works with any standard ZigBee hub.
Ideal For
Common deployment scenarios where CB432 Din-rail Relay with Power Meter delivers the most value.
Sub-metering Panels
DIN-rail W/kWh metering with relay control per circuit.
Hotel Floor Distribution
Controlled circuits with energy insight for BMS.
Commercial Lighting
Switch and meter lighting circuits centrally.
Energy Efficiency Programs
Identify consumption and schedule off-hours.
Retrofit Distribution Boards
Drop-in DIN-rail module for existing panels.
OEM / ODM Projects
OEM branding and ODM development available.
Frequently Asked Questions
What can the CB432 do?
Does it measure energy?
What load ratings are available?
Which ZigBee profile does it use?
Does it strengthen the ZigBee network?
