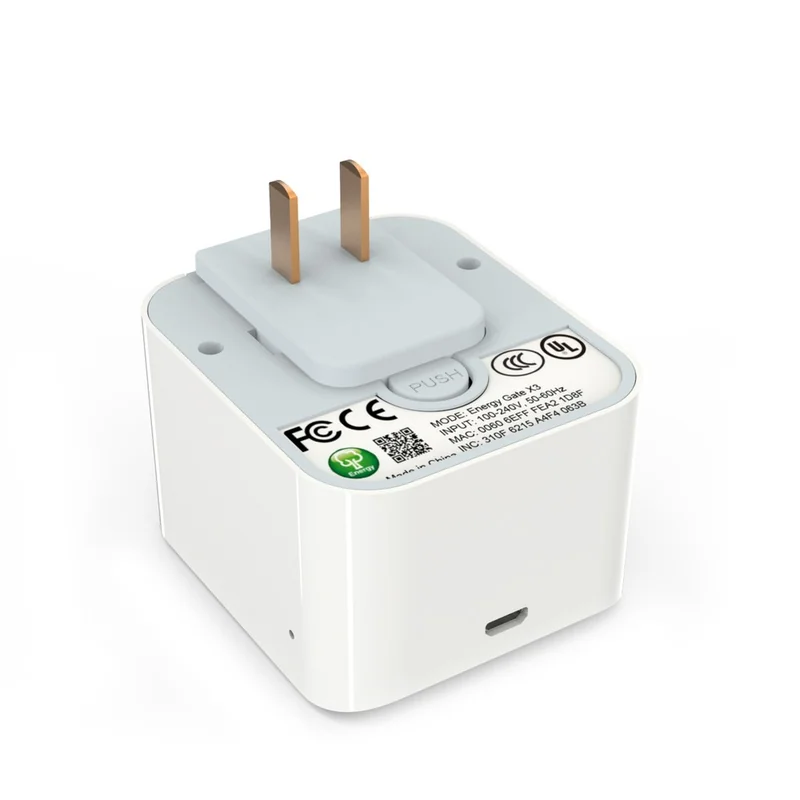

SEG-X3-A ZigBee Gateway
SEG-X3-A
ZigBee 3.0 + BLE 4.2 gateway for up to 50 ZigBee devices, with local linkage, scenes and schedules, encrypted cloud communication and fast Bluetooth network pairing.
Overview
The SEG-X3-A ZigBee Gateway acts as a central platform for your smart home system. It allows you to add up to 50 EPs into the system (Zigbee repeaters required). Automatic control, schedule, scene, remote monitoring and control for ZigBee devices can enrich your IoT experience.
Key Features
- ZigBee 3.0
- BLE 4.2 โ fast, high-probability Bluetooth network pairing
- ZigBee coordinator of the home area network
- Local linkage, scenes, schedules
- Real time, efficiently interoperability and encrypted communication with cloud server
- Open Server API and Gateway API (HTTP Server API / MQTT Gateway API / UART Gateway API / Zigbee Cluster List)
Specifications
| CPU | ESP32-WROVER-E |
|---|---|
| Flash ROM | 16MB |
| RAM | 8MB |
| Wi-Fi | IEEE 802.11 b/g/n 2.4GHz |
| BLE | 4.2 |
| Protocol | ZigBee 3.0 (2.4GHz IEEE 802.15.4) + Wi-Fi + BLE 4.2 |
| Device Capacity | Up to 50 EPs (min. 5 ZigBee repeaters); 32 end devices without repeaters |
| RF Range | Outdoor: 100m (open area) |
| Antenna | Internal PCB antenna |
| Dimensions | 66(L) x 56(W) x 36(H) mm |
| Weight | 56.2g |
Key Benefits
ZigBee 3.0 + BLE 4.2
ZigBee coordinator with fast, high-probability Bluetooth network pairing.
50-Device Capacity
Connects up to 50 endpoints with at least 5 ZigBee repeaters.
Local Automation
Linkage, scenes and schedules run locally even without internet.
Encrypted Cloud
Real-time, encrypted communication with the cloud server.
Ideal For
Common deployment scenarios where SEG-X3-A ZigBee Gateway delivers the most value.
Smart Home Hub
50-device ZigBee network for whole-home automation and scenes.
Local-First Installations
Linkage and schedules keep running even if cloud is unreachable.
Integrator Projects
HTTP Server API, MQTT Gateway API and UART Gateway API for custom platforms.
Fast Onboarding
BLE 4.2 pairing speeds up device commissioning on site.
Building Management
Encrypted cloud communication for BMS and property management integration.
OEM / ODM Projects
OEM branding and ODM development available for distributors and integrators.
Frequently Asked Questions
How many ZigBee devices can the SEG-X3-A connect?
Does it support BLE pairing?
Can automation run without internet?
How does it integrate with third-party systems?
Is cloud communication encrypted?
