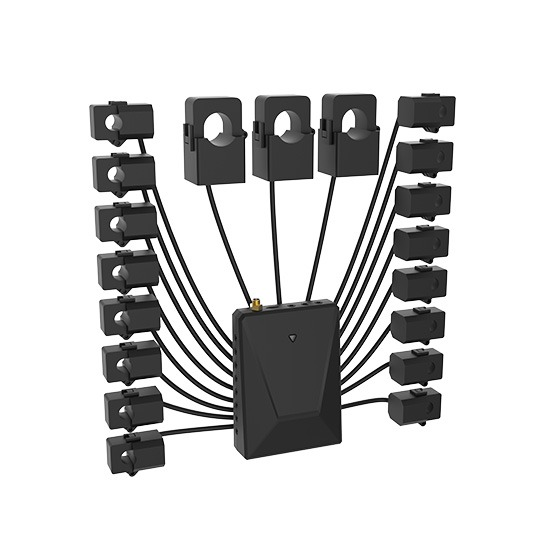

PC341-W-MQTT Multi-Circuit WiFi Power Meter
PC341-W-MQTT
Open-protocol WiFi multi-circuit power meter monitoring whole-home energy and up to 16 individual circuits. Bidirectional measurement, 15-second reporting, external magnetic antenna, direct integration without third-party cloud.
Overview
PC341-W helps you monitor the amount of electricity Consumed and Produced in your facility by connecting the clamp on to the power cable. Monitor whole home Energy and up to 16 individual circuits.
Key Features
- Single, Split-Phase 120/240VAC, 3-Phase/4-wire 480Y/277VAC electricity system compatible.
- Remotely monitor whole home Energy and up to 16 individual circuits with 50A Sub CT, like Solar, lighting, receptacles.
- Bi-Directional measurement: Show how much energy you are producing, energy consumed and excess energy back to the grid.
- Real-time Voltage, Current, PowerFactor, ActivePower, Frequency measurement.
- Historical data of Energy Consumed and Energy Production is displayed in Day, Month, Year.
- External antenna prevents signal from being shielded.
Standard models: Split-Phase (US): PC341-2M-W, PC341-2M16S-W. Three-Phase (EU): PC341-3M-W, PC341-3M16S-W.
Specifications
| Accuracy | â€100W: ±2W; >100W: ±2% |
|---|---|
| Voltage | 90~277 Vac 50/60Hz â Single-Phase 240VAC L-N; Split-Phase 120/240VAC; Three-Phase up to 480Y/277VAC (no Delta) |
| Current | 200A main CT (120A/80A optional); 50A sub CT |
| Frequency | 50/60Hz |
| Protocol | WiFi 802.11 b/g/n @ 2.4GHz + BLE (pairing) |
| Wi-Fi | 802.11 b/g/n @ 2.4GHz |
| BLE | For Wi-Fi Pairing |
| Antenna | External magnetic antenna |
| Main CT | 3.5mm three-pole audio connector with 1m cable â 200A default; 120A/80A optional |
| Sub CT | 2.5mm three-pole audio connector with 1m cable â 50A |
| Supported Systems | Single-Phase 240VAC; Split-Phase 120/240VAC; Three-Phase up to 480Y/277VAC (no Delta connection) |
| Mounting | Wall or DIN rail mounting |
| Operating Temp | -20â to +55â (â€90% non-condensing) |
| Measured Parameters | Voltage, Current, Power Factor, Active Power, Frequency per circuit; Energy Consumed / Energy Produced / excess to grid |
| Reporting Cycle | Every 15 seconds |
| Certification | CE |
| Place of Origin | China |
| Brand | OWON |
Key Benefits
Whole-Home + 16 Circuits
Monitors whole-home energy and up to 16 individual circuits with 50A sub CTs.
Bi-Directional Measurement
Shows energy produced, energy consumed and excess energy back to the grid.
Open-Protocol Integration
Direct-to-cloud integration without a third-party public cloud.
External Magnetic Antenna
Prevents signal shielding for reliable WiFi inside metal distribution panels.
Ideal For
Common deployment scenarios where PC341-W-MQTT Multi-Circuit WiFi Power Meter delivers the most value.
Solar & Grid Interactive Systems
Bi-directional measurement shows production, consumption and excess fed back to the grid.
Multi-Circuit Energy Management
16 sub circuits plus whole-home monitoring for complete facility visibility.
Energy Management Platforms
Open-protocol integration feeds data into EMS, dashboards and analytics platforms.
Whole-Home Energy Monitoring
Tracks main and sub circuits for residential and commercial installations.
Demand & Load Analysis
Per-circuit real-time data for demand profiling and energy efficiency programs.
OEM / ODM Projects
OEM branding and ODM development available for distributors and integrators.
Frequently Asked Questions
What power systems does PC341 support?
How many circuits can be monitored simultaneously?
Does it support bidirectional energy measurement?
