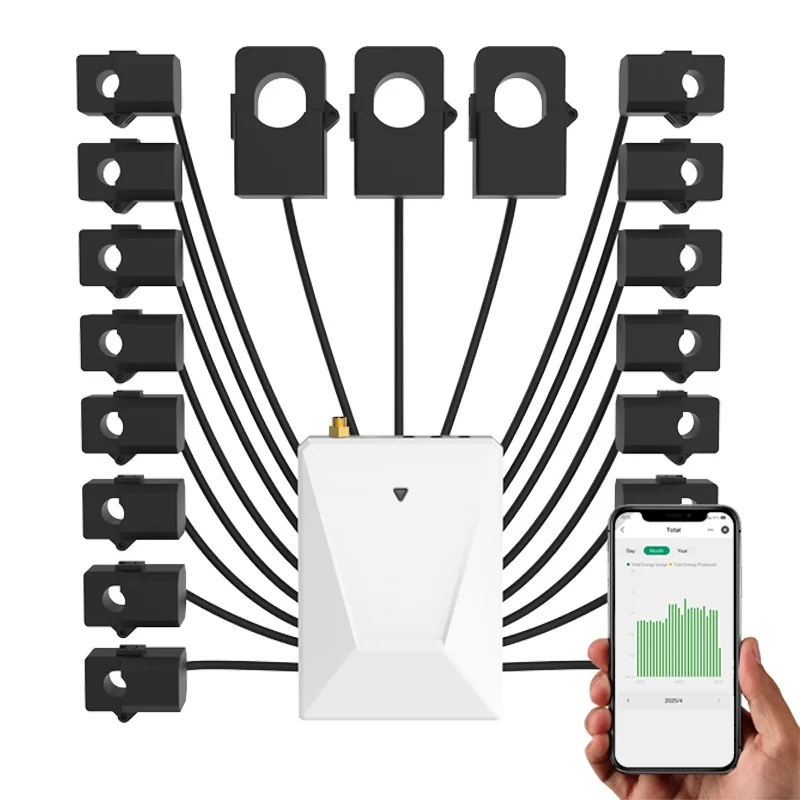

PC341-W-TY/N Multi-Circuit WiFi Energy Monitor
PC341-W-TY/N
Tuya-compatible WiFi multi-circuit energy monitor tracking whole-home energy and up to 16 individual circuits with 200A main CTs and 50A sub CTs. 15-second reporting, bidirectional measurement, external magnetic antenna.
Overview
PC341-W-TY/N helps you monitor the amount of electricity Consumed and Produced in your facility by connecting the clamp on to the power cable. Monitor whole home Energy and up to 16 individual circuits.
Key Features
- Tuya compliant. Support automation with other Tuya device by export and import of grid or other energy values
- Single Phase, Split Phase, 3-Phase 4-Wire electricity system compatible
- Remotely monitor whole home Energy and up to 16 individual circuits with 50A Sub CT, like Solar, lighting, receptacles
- Wireless communication via Wi-Fi 2.4GHz
- Real-time Voltage, Current, PowerFactor, ActivePower, Frequency, measurement
- Bidirectional Measurement: Energy Usage / Solar Production
- Historical data could be displayed and exported in App
- External antenna prevents signal from being shielded
Standard models: Split-Phase (US): PC341-W-TY/200A*2, PC341-W-TY/200A*2/50A*16. Three-Phase (EU): PC341-W-TY/200A*3, PC341-W-TY/200A*3/50A*16.
Specifications
| Accuracy | ±1% (Voltmeters) |
|---|---|
| Ammeter Accuracy | 200A CT: ±1% (2-200A), ±2% (0-2A); 50A CT: ±1% (1-50A), ±2% (0-1A) |
| Voltage | 90~277 Vac 50/60Hz (RMS per phase) |
| Current | 200A main CT (300A/500A optional); 50A sub CT (80A/120A optional) |
| Frequency | 50/60Hz |
| Power Supply | <2W |
| Protocol | WiFi 802.11 b/g/n @ 2.4GHz + BLE (pairing) |
| Wi-Fi | 802.11 b/g/n @ 2.4GHz |
| BLE | For Pairing |
| Antenna | External magnetic antenna |
| Main CT | 3.5mm three-pole audio connector with 1m cable â 200A default; 300A/500A optional |
| Sub CT | 2.5mm three-pole audio connector with 1m cable â 50A default; 80A/120A optional |
| Supported Systems | Single-Phase, Split-Phase, Three-Phase (3P3W & Delta not supported) |
| Mounting | Wall or DIN rail mounting |
| Dimensions | 81(W) x 41(D) x 111(H) mm |
| Operating Temp | -20â to +55â (â€90% non-condensing) |
| Measured Parameters | Voltage, Current, Power Factor, Active Power, Frequency per circuit; Energy Usage / Solar Production |
| Reporting Cycle | Every 15 seconds |
| Certification | CE |
| Place of Origin | China |
| Brand | OWON |
Key Benefits
Whole-Home + 16 Circuits
Monitors whole-home energy and up to 16 individual circuits â solar, lighting, receptacles.
200A Main + 50A Sub CTs
Dual-level CT system: 200A main CTs (300A/500A optional) plus 16 sub CT channels.
External Magnetic Antenna
Prevents signal shielding for reliable WiFi inside metal distribution panels.
Bidirectional Measurement
Tracks energy usage and solar production across the whole installation.
Ideal For
Common deployment scenarios where PC341-W-TY/N Multi-Circuit WiFi Energy Monitor delivers the most value.

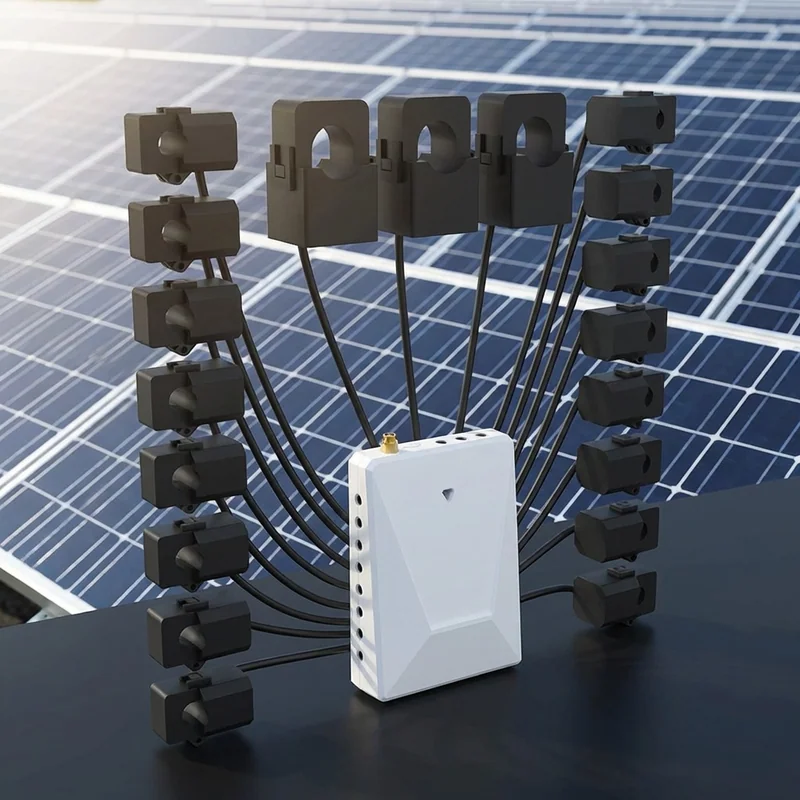

Solar PV Whole-System Monitoring
Monitors PV generation, home load and net energy across main and sub circuits.
Multi-Circuit Energy Management
Up to 16 sub circuits tracked independently â lighting, sockets, appliances, HVAC.
Residential & Commercial Solar
Scalable multi-circuit metering for homes, commercial buildings and industrial PV.
Energy Dashboards & Analytics
Per-circuit real-time data plus historical export for dashboards and reporting.
Whole-Home Energy Monitoring
One device replaces multiple meters â whole-home plus circuit-level visibility.
OEM / ODM Projects
OEM branding and ODM development available for distributors and integrators.
