PCT503 ZigBee Smart Thermostat (ZHA)
PCT503
ZigBee HA1.2 smart thermostat for 2H/2C multistage conventional and heat pump systems, with 3.5-inch color TFT display, smart rotary control, AWAY button and OTA firmware updates.
Overview
The PCT503 is a ZigBee smart thermostat with a 3.5-inch TFT color LCD, smart rotary control and full multistage HVAC support.
Key Features
- ZigBee HA1.2, router device
- Supports 2H/2C multistage conventional and heat pump systems
- One-touch AWAY button to save energy
- 4-period and 7-day programming
- Multiple HOLD options
- Automatic heating and cooling changeover
- Fan cycle mode periodically circulates air for comfort
- Compressor short cycle protection delay
- Failure protection by cutting off all circuit relays after power outage

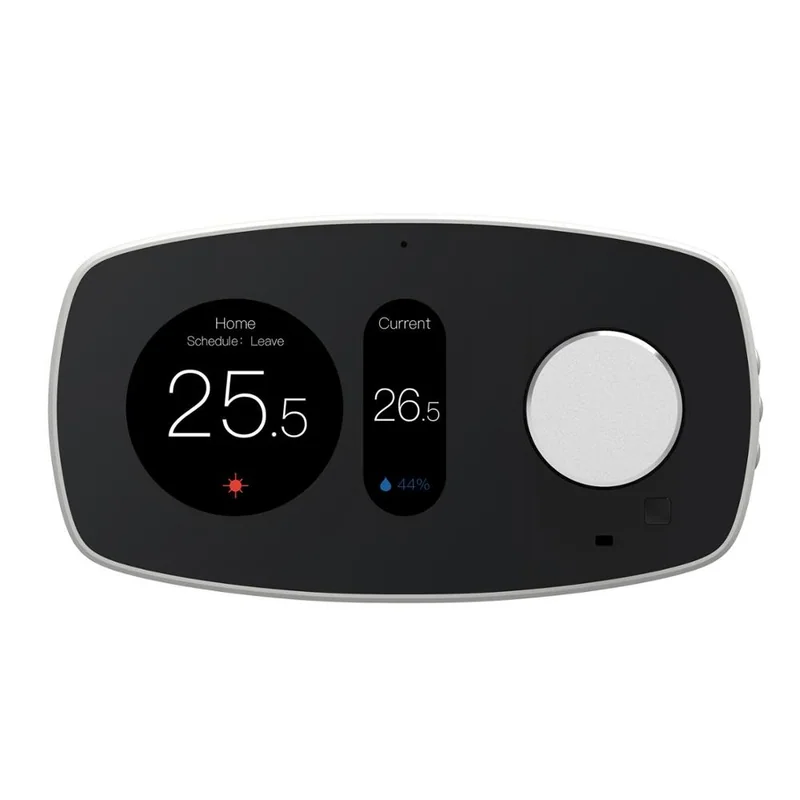

- 3.5" TFT color LCD with backlit status colors (red heat / blue cool / green fan)
- Screen lights up for 20 seconds when motion is detected
- Smart rotary control wheel + 3 side-buttons
- OTA firmware upgrade (optional, via WiFi)
Specifications
| Protocol | ZigBee 2.4GHz IEEE 802.15.4, ZHA1.2 Profile, Router Device |
|---|---|
| Output Power | +3dBm (up to +8dBm) |
| Receive Sensitivity | -100dBm |
| Display | 3.5" TFT color LCD |
| Compatible Systems | 2H/2C multistage conventional and heat pump; gas, electric, hot water, steam, oil heat sources |
| Fan | Fan cycle mode; AUTO-ON-CIRC |
| Programming | 4-period 7-day programming |
| Hold Options | Permanent / Temporary / Back to Schedule |
| OTA | Optional Over-the-Air upgrade via WiFi |
| dimmer | Smart rotary control wheel + 3 side buttons |
| Motion Detection | Screen lights up 20s on motion |
| Sensing | Motion sensor; backlit color status (red=heat, blue=cool, green=fan) |
Key Benefits
Smart Rotary Control
Rotary wheel + 3 side buttons with motion-activated 20s screen light.
2H/2C Multistage
Supports 2-stage heat/2-stage cool conventional and heat pump systems.
One-Touch AWAY
Single button saves energy while you are on the go.
3.5" Color TFT
Backlit status colors โ red heat, blue cool, green fan.
Ideal For
Common deployment scenarios where PCT503 ZigBee Smart Thermostat (ZHA) delivers the most value.
Whole-Home Comfort
2H/2C multistage control for complete HVAC management.
Heat Pump Homes
Full heat pump support with compressor short-cycle protection.
Smart Home Integration
ZigBee HA1.2 with complete docs for third-party hubs.
Energy-Conscious Users
AWAY button, scheduling and fan-cycle modes cut waste.
Premium Renovations
3.5" color TFT and rotary control add a premium feel.
OEM / ODM Projects
OEM branding and ODM development available.
