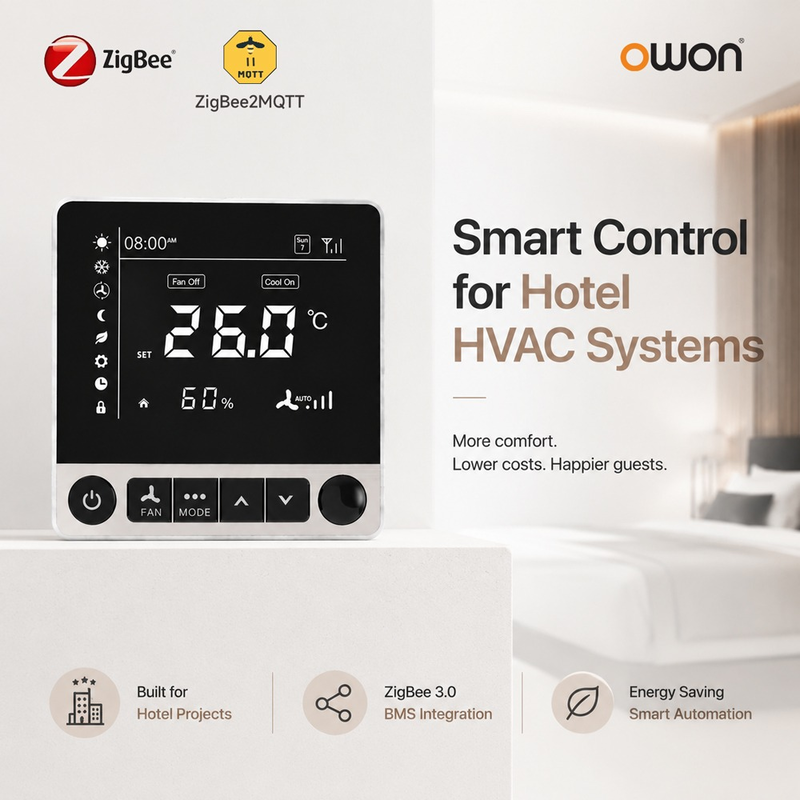

PCT504-Z ZigBee Fan Coil Thermostat (DC12V)
PCT504-Z
ZigBee 3.0 fan coil thermostat for 4-pipe heating & cooling systems, DC12V powered, with temperature and humidity display, motion detection and scheduling.
Overview
The smart thermostat makes it easier to control your household temperature. You can schedule your thermostat working hours so it will work based on your plan. With a smart thermostat, you will be able to remotely control the temperature anytime through your mobile phone.
Key Features
- ZigBee 3.0
- DC 12V powered
- Support up to 4 pipes Heating & Cooling Fan coil system
- Vertical Alignment panel
- Temperature and humidity display
- System mode: Heat-Off-Cool-Ventilation
- Fan mode: AUTO-Low-Medium-High
- Sleep/Eco mode
- Motion detection
- ON/OFF Scheduling
- Heating & cooling indicator
- Remote control
Specifications
| CPU | 32-bit ARM Cortex-M4 |
|---|---|
| Protocol | ZigBee 3.0 (2.4GHz IEEE 802.15.4) |
| Power Supply | DC 12V |
| Compatible Systems | 4-pipe heating & cooling fan coil; 2-pipe heat-only; 2-pipe cool-only |
| System Modes | Heat-Off-Cool-Ventilation |
| Fan Modes | AUTO-Low-Medium-High |
| Display | Temperature and humidity display |
| RF Range | Outdoor/indoor: 100m/30m (open area) |
| Motion Detection | Motion detection |
Key Benefits
DC12V Powered
Runs on 12V DC supply for projects using low-voltage wiring.
Hotel Fan Coil Control
Purpose-built for 4-pipe fan coil systems with Heat-Off-Cool-Ventilation modes.
Temp + Humidity
Displays temperature and humidity with motion detection.
ZigBee 3.0 Mesh
Reliable mesh networking across rooms and floors for large projects.
Ideal For
Common deployment scenarios where PCT504-Z ZigBee Fan Coil Thermostat (DC12V) delivers the most value.
Hotel Guest Rooms
Standardized fan coil control across guest rooms with energy-saving strategies.
Low-Voltage Projects
DC12V supply for projects using low-voltage wiring.
Serviced Apartments
Scalable HVAC control for multi-family and student housing.
BMS Integration
ZigBee gateways, ZigBee2MQTT and smart BMS environments.
Energy Management
Occupancy detection, Eco mode and scheduling reduce waste.
OEM / ODM Projects
OEM branding and ODM development available.
Frequently Asked Questions
What is the difference between PCT504 and PCT504-Z?
What fan coil systems does it support?
What modes are available?
Can it be scheduled?
Does it work with ZigBee gateways?
