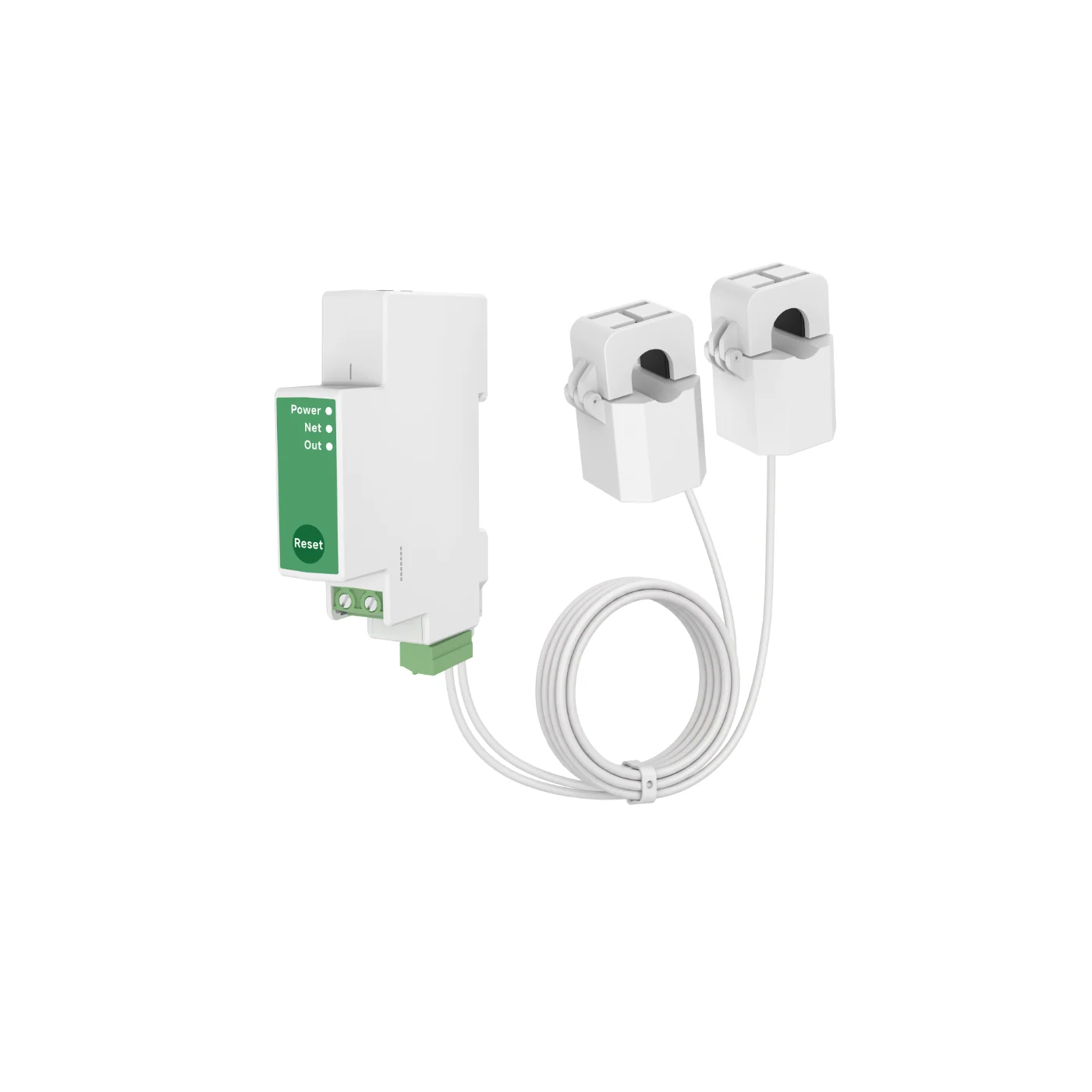

PC4711-W-E-TY/R
Single-Phase WiFi + Ethernet Smart Energy Meter with Relay
UniClip Pro: single-phase metering with a 3 A / 5 A dry-contact relay and an Ethernet path on one module - measure, switch and stay reachable.
Overview
PC4711-W-E-TY/R (UniClip Pro) is the only single-phase model that combines metering, switching and a choice of network path in one 19 mm module: the dry-contact relay of the /R version and the Ethernet 10/100 Mbps port of the /E version together.
The metering core is unchanged - 230 V AC nominal, 90-277 V input range, up to two open-type CTs from 80 A to 300 A, bidirectional measurement and 15-second Tuya reporting - so specifying this model costs the relay and the port, and nothing else.
PC4711-W-E-TY/R Platform and Integration Notes
Automation on measured values. Switching follows the load rather than a manual tap: a Tuya scene can act on a power threshold or a schedule.
Offline storage, so a dropout is not a gap in the record. Readings are held locally and re-reported automatically once the network returns.
Tuya App, and Home Assistant. The meter is read in the Tuya App and also integrates with Home Assistant, where readings and relay state are both available.
PC4711-W-E-TY/R Limits and What to Specify Instead
- Three-phase, split-phase or 3P3W supplies — a single-phase meter; three-phase services need the PC4713 range, and a 3P3W or delta supply specifically needs the PC4713-W-E-TY/3W.
- A third metering channel — this model takes up to two CTs. Three single-phase circuits on one device is the PC4711-W-TY/3CT.
- Your own server as the destination — no Tuya model can be pointed at your own platform; PC4711-W and PC4711-W-485 are the Open API equivalents.
Specifications
| Accuracy | ±1% (Voltmeters) |
|---|---|
| Ammeter Accuracy | 80A CT: ±1% (1-80A), ±2% (0-1A); 120A CT: ±1% (2-120A), ±2% (0-2A); 200A CT: ±1% (2-200A), ±2% (0-2A); 300A CT: ±1% (6-300A), ±2% (2-6A), ±5% (0-2A) |
| Voltage | 90~277 Vac 50/60Hz |
| Current | 80A~300A (CT dependent) |
| Frequency | 50/60Hz |
| Power Supply | <2W |
| Protocol | WiFi 802.11 b/g/n @ 2.4GHz + Ethernet 10/100 Mbps + BLE (pairing) |
| Wi-Fi | 802.11 b/g/n @ 2.4GHz |
| Ethernet | 10/100 Mbps |
| BLE | For Pairing |
| relay | Dry contact, 3 A rated / 5 A max, overload protection |
| relayStatus | Reported instantly to the App |
| Supported Systems | Single-Phase |
| Mounting | 35mm DIN rail mounting |
| Dimensions | 19(W) x 69(D) x 90(H) mm |
| Operating Temp | -20℃ to +55℃ (≤90% non-condensing) |
| Measured Parameters | Voltage, Current, Power Factor, Frequency, Active Power, Reactive Power, Apparent Power; Energy Usage / Solar Production |
| Reporting Cycle | 15 seconds; relay status instant |
| Clamp Inner Dimension | 80A: Ø10mm; 120A (default): Ø16mm; 200A: Ø20mm; 300A: Ø24mm |
| Certification | CE |
| Place of Origin | China |
| Brand | OWON |
Key Benefits
Relay, Ethernet and Wi-Fi Together
The only single-phase model carrying all three in one 19 mm DIN module.
Relay That Drives a Contactor
Dry contact rated 3 A resistive / 5 A maximum — a small load directly, or an external contactor for a larger one, status reported instantly.
Two Open-Type CTs, No Rewiring
Up to two split-core CTs from 80 A to 300 A, with bidirectional solar metering on a single-phase circuit.
Data Export With Day-to-Year History
Export from the App with history by day, week, month and year, plus offline storage with automatic re-report.
Ideal For
Common deployment scenarios where Single-Phase WiFi + Ethernet Smart Energy Meter with Relay delivers the most value.
Cabinet Installations Needing Both
Metering, switching and a wired network path in one 19 mm module.
Plant Rooms Out of Wi-Fi Range
Ethernet keeps the meter reachable while the relay controls the load.
Demand-Based Load Control
Switch on a measured threshold, with the wired link carrying the reporting.
Commercial Single-Phase Boards
Sub-metering where the circuit also has to be switched remotely.
Commissioning Without Site Visits
CT re-ranging, data erase and reboot are all reachable from the App.
Distributor and OEM Programmes
Neutral standard units, with branding and packaging available.
Frequently Asked Questions
Why choose this over the PC4711-W-TY/R?
What can the relay switch?
Are both the relay and Ethernet active at the same time?
Which single-phase UniClip is the most complete?
PC4711 Series — choose the right variant
| PC4711-W | WiFi + open protocol (HTTP / MQTT / Modbus TCP) |
|---|---|
| PC4711-W-TY | WiFi + Tuya Cloud |
| PC4711-W-TY/R | + dry-contact relay (remote on/off) |
| PC4711-W-E-TY | + wired Ethernet 10/100 |
| PC4711-W-E-TY/R — this page | + Ethernet + dry-contact relay |
| PC4711-W-TY/3CT | + 3 CT channels (three single-phase circuits) |
| PC4711-W-485 | + RS485 Modbus RTU (BMS / SCADA) |
Not sure which variant fits your project? See the PC471 selection guide.
