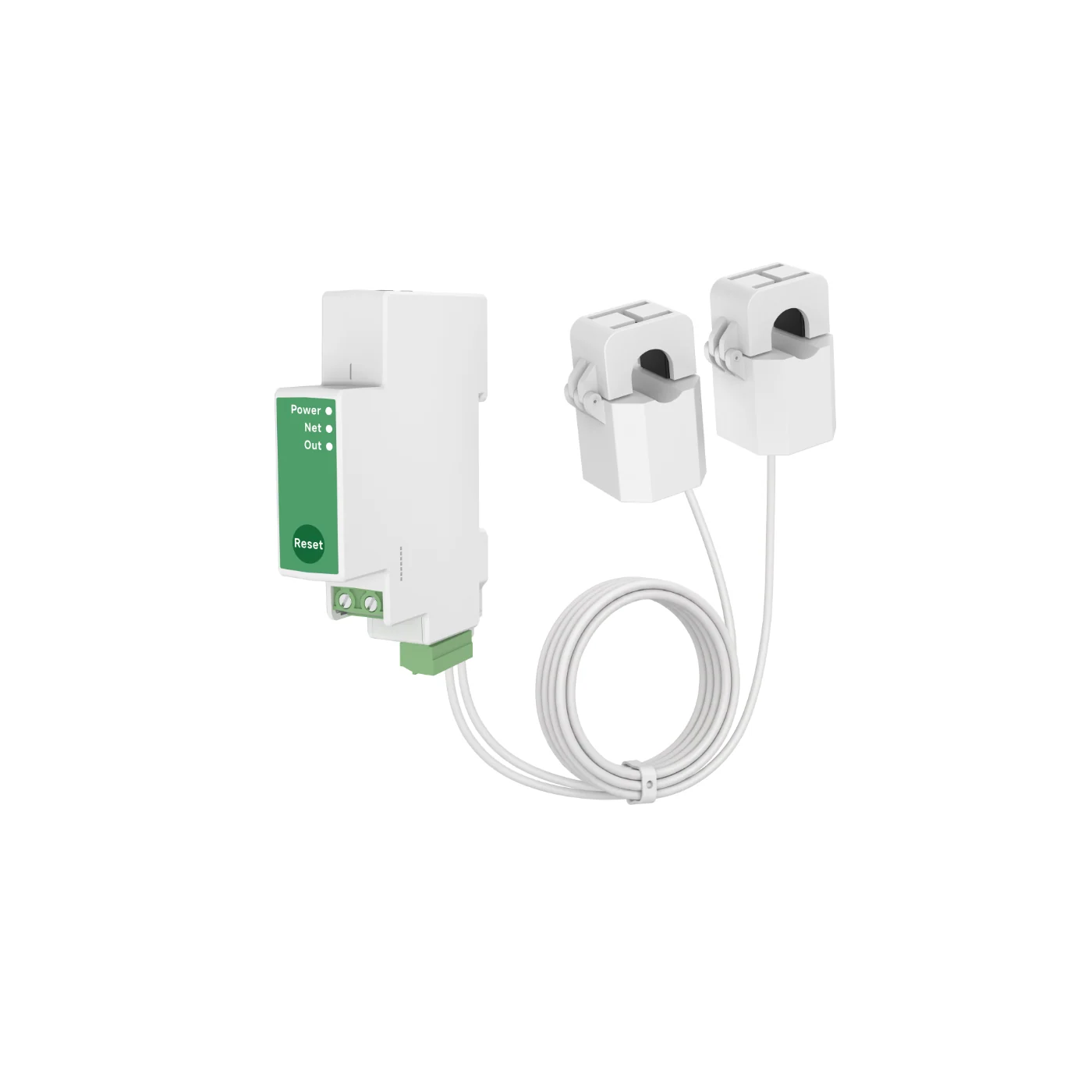

PC4711-W-TY/R
Single-Phase WiFi Smart Energy Meter with Relay
Single-phase Tuya meter that can act, not just report: two 300 A CTs plus a 3 A / 5 A dry-contact relay for switching a load or driving a contactor.
Overview
PC4711-W-TY/R is the model to choose when metering alone is not enough. It has the same single-phase metering as the base UniClip, plus a dry-contact relay rated 3 A resistive / 5 A maximum with overload protection.
That relay is the difference between a meter that reports and one that acts: switch a heater or charger from the App, or let a Tuya automation switch when measured power crosses a threshold. Above the contact rating it drives an external contactor. Relay status is reported instantly, so the App never shows a stale state.
PC4711-W-TY/R Platform and Integration Notes
Automation on measured values. Paired with Tuya scenes, the relay switches on a power threshold or a schedule rather than only on a manual tap — which is what turns metering into demand-based control.
Offline storage, so a dropout is not a gap in the record. Readings are held locally and re-reported automatically once the network returns.
CT re-ranging, data erase and remote reboot without a visit. A clamp specification can be changed or the record cleared from the App.
Tuya App, and Home Assistant. Readings and relay state are read in the Tuya App, and both are also visible in Home Assistant.
PC4711-W-TY/R Limits and What to Specify Instead
- Ethernet — not fitted. The PC4711-W-E-TY/R carries the relay and the 10/100 Mbps port together.
- Three-phase loads switched directly — the dry contact is rated 3 A resistive / 5 A maximum; a three-phase circuit is switched through an external contactor driven by the relay.
- Three-phase, split-phase or 3P3W supplies — a single-phase meter; those services need the PC4713 range, and a 3P3W or delta supply specifically needs the PC4713-W-E-TY/3W.
- Your own server as the destination — PC4711-W or PC4711-W-485 from the Open API range.
Specifications
| Accuracy | ±1% (Voltmeters) |
|---|---|
| Ammeter Accuracy | 80A CT: ±1% (1-80A), ±2% (0-1A); 120A CT: ±1% (2-120A), ±2% (0-2A); 200A CT: ±1% (2-200A), ±2% (0-2A); 300A CT: ±1% (6-300A), ±2% (2-6A), ±5% (0-2A) |
| Voltage | 90~277 Vac 50/60Hz |
| Current | 80A~300A (CT dependent) |
| Frequency | 50/60Hz |
| Power Supply | <2W |
| Protocol | WiFi 802.11 b/g/n @ 2.4GHz + BLE (pairing) |
| Wi-Fi | 802.11 b/g/n @ 2.4GHz |
| BLE | For Pairing |
| relay | Dry contact, 3 A rated / 5 A max, overload protection |
| relayStatus | Reported instantly to the App |
| Supported Systems | Single-Phase |
| Mounting | 35mm DIN rail mounting |
| Dimensions | 19(W) x 69(D) x 90(H) mm |
| Operating Temp | -20℃ to +55℃ (≤90% non-condensing) |
| Measured Parameters | Voltage, Current, Power Factor, Frequency, Active Power, Reactive Power, Apparent Power; Energy Usage / Solar Production |
| Reporting Cycle | 15 seconds; relay status instant |
| Clamp Inner Dimension | 80A: Ø10mm; 120A (default): Ø16mm; 200A: Ø20mm; 300A: Ø24mm |
| Certification | CE |
| Place of Origin | China |
| Brand | OWON |
Key Benefits
Relay for Switching a Load
A dry contact rated 3 A resistive / 5 A maximum with overload protection, with relay status reported instantly.
Drives a Contactor for Larger Loads
For loads above the contact rating the relay drives an external contactor, so one meter can control a circuit it does not carry.
Two Open-Type CTs, No Rewiring
Up to two split-core CTs from 80 A to 300 A clip around the existing cable, plus bidirectional solar metering.
Data Export With Day-to-Year History
Export from the App with history by day, week, month and year, and CT re-ranging or data erase without a site visit.
Ideal For
Common deployment scenarios where Single-Phase WiFi Smart Energy Meter with Relay delivers the most value.
Water Heaters and Pumps
Switch a load from the App or a Tuya scene, with the switching action confirmed in the App.
EV Charger Enable
The relay drives the enable input or a contactor rather than carrying the charging current itself.
Load Shedding on a Threshold
A Tuya automation can switch when measured power crosses a set level.
Remote On/Off for a Sublet
A single-phase circuit that has to be metered and switched from off site.
Solar-Aware Switching
Switch a load against measured generation so consumption follows production.
Distributor and OEM Programmes
Neutral standard units, with branding and packaging available.
Frequently Asked Questions
What can the relay actually switch?
How is the relay controlled?
Can it switch based on what it measures?
Do I lose metering accuracy by adding the relay?
PC4711 Series — choose the right variant
| PC4711-W | WiFi + open protocol (HTTP / MQTT / Modbus TCP) |
|---|---|
| PC4711-W-TY | WiFi + Tuya Cloud |
| PC4711-W-TY/R — this page | + dry-contact relay (remote on/off) |
| PC4711-W-E-TY | + wired Ethernet 10/100 |
| PC4711-W-E-TY/R | + Ethernet + dry-contact relay |
| PC4711-W-TY/3CT | + 3 CT channels (three single-phase circuits) |
| PC4711-W-485 | + RS485 Modbus RTU (BMS / SCADA) |
Not sure which variant fits your project? See the PC471 selection guide.
