PC4711-W-TY/3CT
Single-Phase Multi-Channel Smart Energy Meter
Three single-phase circuits in one Tuya meter: three CTs measured independently, no Ethernet, and a lower host cost than a three-phase meter.
Overview

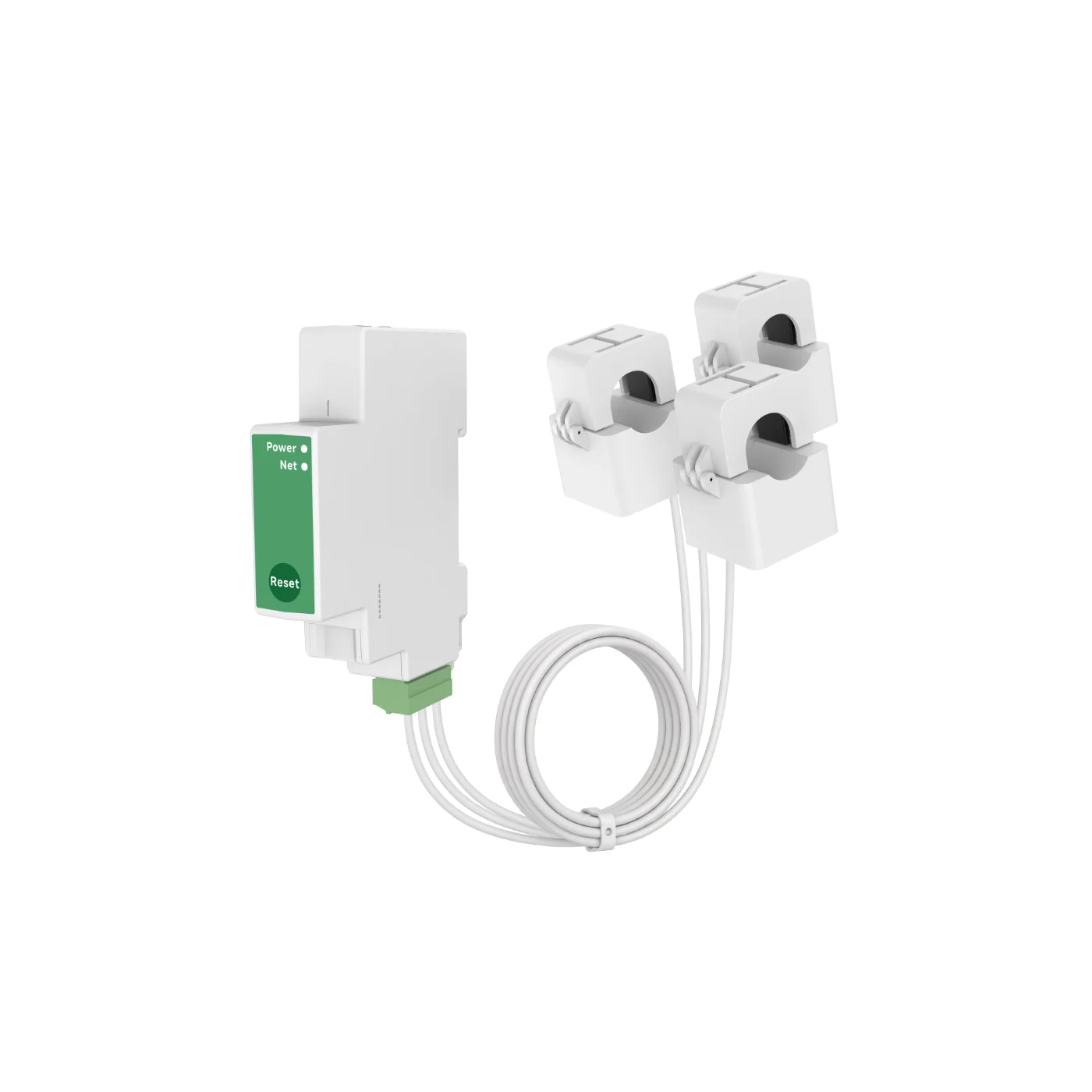

PC4711-W-TY/3CT is the multi-channel member of the single-phase range. It takes three open-type CT clamps where the other models take two, and reads each circuit independently, so three separate single-phase loads or tenants come from one 19 mm module instead of three.
The distinction that matters: this is three single-phase circuits, not a three-phase meter. There are no phases to configure and no phase-to-phase voltage to measure - which is why it is the cheaper route for three single-phase circuits, and why a three-phase service still needs a PC4713. Platform otherwise unchanged: 90-277 V input, CTs 20 A to 300 A, bidirectional metering, 15-second Tuya reporting.
PC4711-W-TY/3CT Platform and Integration Notes
Where the cost saving comes from. Three single-phase circuits metered by one module costs less than a three-phase instrument, because there is no phase-to-phase voltage measurement and no phase configuration to carry.
Offline storage, so a dropout is not a gap in the record. Readings are held locally and re-reported automatically once the network returns.
CT setting, data erase and remote reboot from the App. A channel can be re-ranged or the record cleared without a site visit.
Tuya App, and Home Assistant. All three circuits are read in the Tuya App, and all three are also available in Home Assistant.
Alerts, and App languages. Notifications are pushed to the App rather than being checked for manually each day, and the App is available in German, French, Spanish and Italian as well as English.
PC4711-W-TY/3CT Limits and What to Specify Instead
- Three-phase measurement — this is three single-phase channels, not a three-phase meter. A three-phase four-wire, split-phase or 3P3W service needs the PC4713 range, and a 3P3W or delta supply specifically needs the PC4713-W-E-TY/3W.
- Relay output — not fitted. Load switching is on the PC4711-W-TY/R and PC4711-W-E-TY/R.
- Ethernet — not available on the three-CT model; the two-CT PC4711-W-E-TY offers the wired port.
- Your own server as the destination — PC4711-W or PC4711-W-485 from the Open API range.
Specifications
| Accuracy | ±1% (Voltmeters) |
|---|---|
| Ammeter Accuracy | 80A CT: ±1% (1-80A), ±2% (0-1A); 120A CT: ±1% (2-120A), ±2% (0-2A); 200A CT: ±1% (2-200A), ±2% (0-2A); 300A CT: ±1% (6-300A), ±2% (2-6A), ±5% (0-2A) |
| Voltage | 90~277 Vac 50/60Hz |
| Current | 20A~300A (CT dependent) |
| Frequency | 50/60Hz |
| Power Supply | <2W |
| Protocol | WiFi 802.11 b/g/n @ 2.4GHz + BLE (pairing) |
| Wi-Fi | 802.11 b/g/n @ 2.4GHz |
| BLE | For Pairing |
| ctQuantity | Three open-type CT clamps |
| Supported Systems | Single-Phase |
| Mounting | 35mm DIN rail mounting |
| Dimensions | 19(W) x 69(D) x 90(H) mm |
| Operating Temp | -20℃ to +55℃ (≤90% non-condensing) |
| Measured Parameters | Voltage, Current, Power Factor, Frequency, Active Power, Reactive Power, Apparent Power; Energy Usage / Solar Production |
| Reporting Cycle | 15 seconds |
| Clamp Inner Dimension | 80A: Ø10mm; 120A (default): Ø16mm; 200A: Ø20mm; 300A: Ø24mm |
| Certification | CE |
| Place of Origin | China |
| Brand | OWON |
Key Benefits
Three Circuits in One Module
Three open-type CT channels read three single-phase circuits separately instead of one combined total.
Three Single-Phase Lines, Not a Three-Phase Meter
It does not measure phase-to-phase voltage: there are no phases to configure, which is what makes it cheaper for a three-circuit job.
CTs 80 A to 300 A, Clipped On
No circuit is cut, and the three circuits can mix load and generation because measurement is bidirectional.
Data Export With Day-to-Year History
Export from the App with history by day, week, month and year for all three circuits.
Ideal For
Common deployment scenarios where Single-Phase Multi-Channel Smart Energy Meter delivers the most value.
Three Single-Phase Circuits, One Meter
Three tenants, three loads or three distribution ways metered separately without three devices.
Per-Load Analytics
Separate traces for generation, HVAC and general load instead of one combined figure.
Buildings Without Three-Phase Supply
Where the requirement is three single-phase circuits rather than one three-phase service.
Cost-Sensitive Multi-Circuit Jobs
A three-phase meter would be over-specified and more expensive for the same three circuits.
Mixed Load and Generation
Bidirectional measurement means a generation circuit can sit alongside load circuits.
Distributor and OEM Programmes
Neutral standard units, with branding and packaging available.
Frequently Asked Questions
Can the PC4711-W-TY/3CT measure a three-phase system?
Why choose this instead of a three-phase meter?
How many circuits can the other PC4711 models measure?
Which CT ratings can the three channels use?
Does it have an Ethernet port or a relay?
Can the three circuits be read, exported and automated separately?
Do I have to open the App every day to notice a problem?
Does it need a gateway?
PC4711 Series — choose the right variant
| PC4711-W | WiFi + open protocol (HTTP / MQTT / Modbus TCP) |
|---|---|
| PC4711-W-TY | WiFi + Tuya Cloud |
| PC4711-W-TY/R | + dry-contact relay (remote on/off) |
| PC4711-W-E-TY | + wired Ethernet 10/100 |
| PC4711-W-E-TY/R | + Ethernet + dry-contact relay |
| PC4711-W-TY/3CT — this page | + 3 CT channels (three single-phase circuits) |
| PC4711-W-485 | + RS485 Modbus RTU (BMS / SCADA) |
Not sure which variant fits your project? See the PC471 selection guide.
