PC4713-W-E-TY

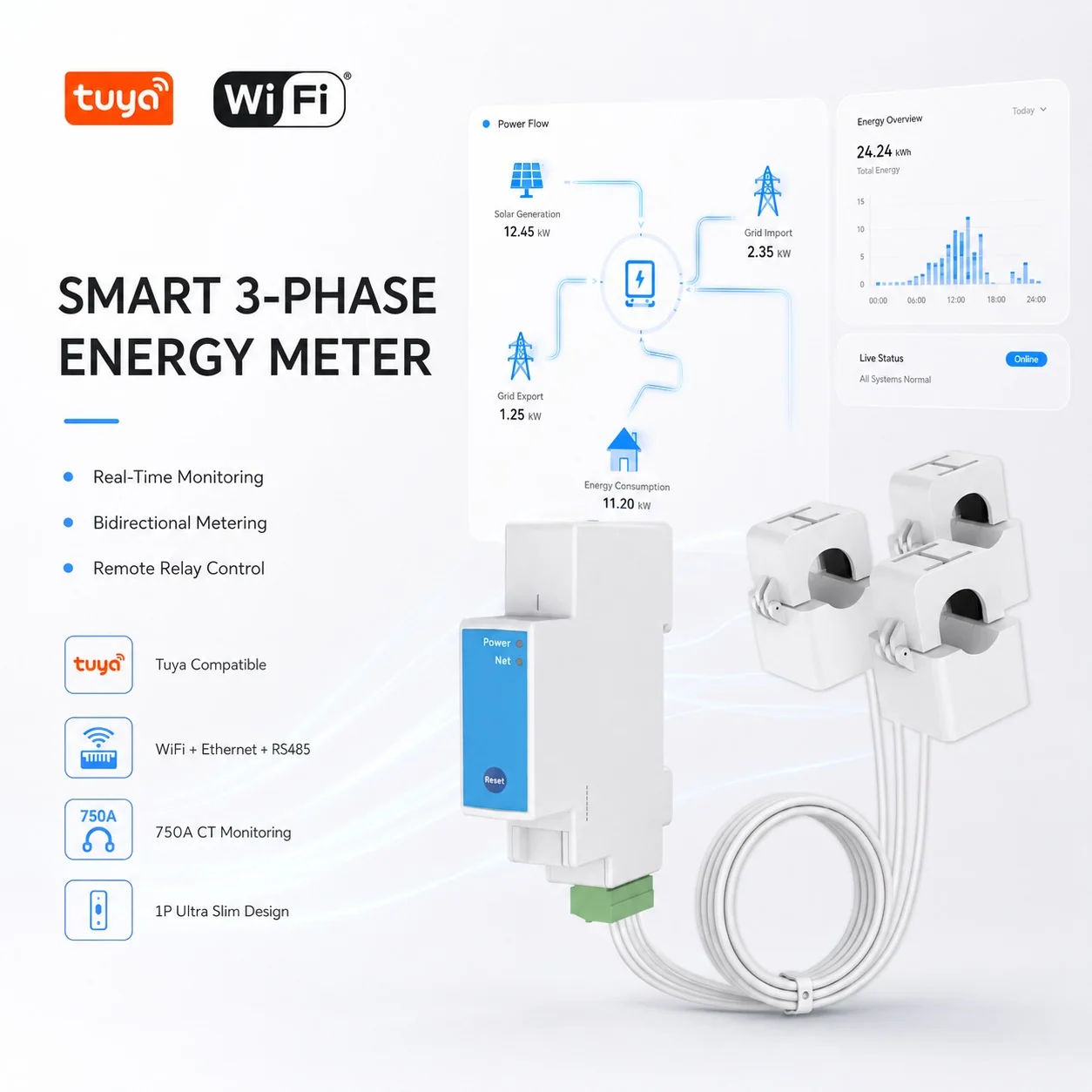

Three-Phase WiFi + Ethernet Smart Energy Meter
Wired Ethernet keeps this Tuya 3-phase meter online where WiFi is weak — three 750 A CTs, 15-second updates to Smart Life.
Overview
PC4713-W-E-TY is the three-phase Tuya meter for boards where Wi-Fi alone is not dependable. It carries the same three CT inputs and the same Tuya platform as the PC4713-W-TY and adds an Ethernet 10/100 Mbps port; the two links run at the same time rather than one standing in for the other.
That matters in metal enclosures, basements and plant rooms, where the wireless signal is attenuated exactly where the meter has to be mounted. The electrical specification is unchanged: three-phase four-wire at 90–277 Vac per phase, plus split-phase and single-phase, with bidirectional measurement on CTs from 80 A to 750 A.
Where the PC4713-W-E-TY Sits in the Range
The family shares one metering core and differs in connectivity and control. This model buys the wired network path and nothing else — metering, platform and reporting behaviour are identical to the PC4713-W-TY. If the relay output is wanted as well, the PC4713-W-E-TY/R has both; if the site's Wi-Fi is dependable, the PC4713-W-TY is the cheaper specification.
As with every model in the Tuya line, a three-phase three-wire or delta supply needs the PC4713-W-E-TY/3W, and a project that has to report into its own cloud or local server needs the Open API hardware — PC4713-W or PC4713-W-485 — which is a different build rather than a firmware option.
PC4713-W-E-TY Platform and Integration Notes
Reports into the Tuya Cloud, read in the Tuya App. Live values and history by day, week, month and year, with grid and energy values exportable to and importable from other Tuya devices for automation.
Offline storage with automatic re-report. Readings are buffered locally and re-sent when a network path returns, so neither link being down leaves a permanent gap.
Notification and language coverage. Alerts reach the App, which carries German, French, Spanish and Italian as well as English.
Reactive and apparent power on the home screen, so power factor is visible at a glance rather than after opening a report.
Standard Tuya DPs keep Home Assistant working. Standard data points are used wherever possible, with custom DPs only where needed.
PC4713-W-E-TY Limits and What to Specify Instead
- Three-phase three-wire and delta — needs the PC4713-W-E-TY/3W.
- Relay output — not fitted. The PC4713-W-E-TY/R carries both this Ethernet port and the dry-contact relay.
- RS485 / Modbus RTU — not offered in the Tuya range. The PC4713-W-485 Open API meter has it.
- Any destination other than the Tuya Cloud — a self-hosted or local server needs the Open API series.
Specifications
| Accuracy | ±1% (Voltmeters) |
|---|---|
| Ammeter Accuracy | 80A CT: ±1% (1-80A), ±2% (0-1A); 120A CT: ±1% (2-120A), ±2% (0-2A); 200A CT: ±1% (2-200A), ±2% (0-2A); 300A CT: ±1% (6-300A), ±2% (2-6A), ±5% (0-2A); 500A CT: ±1% (6-500A), ±2% (2-6A), ±5% (0-2A); 750A CT: ±1% (6-750A), ±2% (2-6A), ±5% (0-2A) |
| Voltage | 90~277 Vac 50/60Hz (RMS per phase) |
| Current | 80A~750A (CT dependent) |
| Frequency | 50/60Hz |
| Power Supply | <2W |
| Protocol | WiFi 802.11 b/g/n @ 2.4GHz + Ethernet 10/100 Mbps + BLE (pairing) |
| Wi-Fi | 802.11 b/g/n @ 2.4GHz |
| Ethernet | 10/100 Mbps |
| BLE | For Pairing |
| Supported Systems | Single-Phase, Split-Phase, Three-Phase (3P3W & Delta not supported) |
| Mounting | 35mm DIN rail mounting |
| Dimensions | 19(W) x 69(D) x 90(H) mm |
| Operating Temp | -20℃ to +55℃ (≤90% non-condensing) |
| Measured Parameters | Voltage, Current, Power Factor, Frequency, Active Power, Reactive Power, Apparent Power; Energy Usage / Solar Production |
| Reporting Cycle | 15 seconds |
| Clamp Inner Dimension | 80A: Ø10mm; 120A (default): Ø16mm; 200A: Ø20mm; 300A: Ø24mm; 500A: Ø36mm; 750A: Ø51mm |
| Certification | CE |
| Place of Origin | China |
| Brand | OWON |
Key Benefits

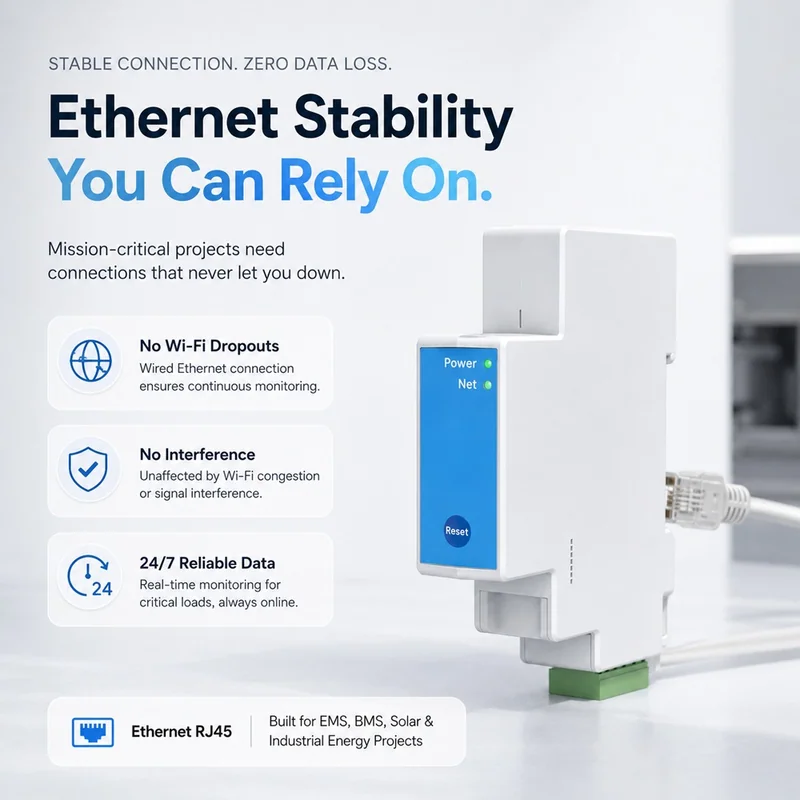

Wi-Fi and Ethernet Running Together
Both links are active at once rather than one backing up the other, which is what keeps the meter reachable in a metal cabinet or plant room.
Data Export, Hour by Hour or Day by Day
Per-phase and per-sub-circuit energy can be exported — a single day hour by hour, or a date range day by day, up to one year.
CT Setting and Data Erase From the App
Re-range a CT or clear stored data from the App, without resetting the network configuration.
Notification Alerts
The meter pushes alerts to the App instead of leaving them to be found in a chart later.
Ideal For
Common deployment scenarios where Three-Phase WiFi + Ethernet Smart Energy Meter delivers the most value.
Commercial Buildings & Facilities
Ethernet provides stable connectivity where WiFi is unreliable in industrial environments.
Solar PV Self-Consumption
Bidirectional measurement tracks generation and consumption across the phases.
Whole-Home Energy Monitoring
Three CT clamps monitor the entire installation on single, split or three-phase supplies.
Residential Smart Home
Tuya App with historical data viewable by day, week, month and year.
Energy Analytics & BMS
Stable 15-second reporting feeds analytics and building management platforms.
OEM / ODM Projects
OEM branding and ODM development available for distributors and integrators.
Frequently Asked Questions
What electrical systems does the PC4713-W-E-TY support?
Why does the PC4713 include Ethernet connectivity?
Do Ethernet and Wi-Fi take turns, or are both live?
Does it need a gateway?
Which CT ratings and apertures are available?
Can I export data, and how long is history kept?
Does it raise alerts, and in which languages?
PC4713 Series — choose the right variant
| PC4713-W | WiFi + open protocol (HTTP / MQTT / Modbus TCP) |
|---|---|
| PC4713-W-TY | WiFi + Tuya Cloud |
| PC4713-W-TY/R | + dry-contact relay (remote on/off) |
| PC4713-W-E-TY — this page | + wired Ethernet 10/100 |
| PC4713-W-E-TY/R | + Ethernet + dry-contact relay |
| PC4713-W-E-TY/3W | 3-phase 3-wire (3P3W) supplies |
| PC4713-W-485 | + RS485 Modbus RTU (BMS / SCADA) |
Not sure which variant fits your project? See the PC471 selection guide.
