Industrial Energy Submetering

The Challenge

Industrial facilities consume massive amounts of energy but lack per-machine visibility. A single production line may have 20+ machines, each with different energy profiles. Without granular data, energy waste goes undetected and unmanaged.

Our Solution

OWON's Industrial Energy Submetering system provides per-machine energy monitoring with MQTT integration into existing industrial control systems.

Product Stack

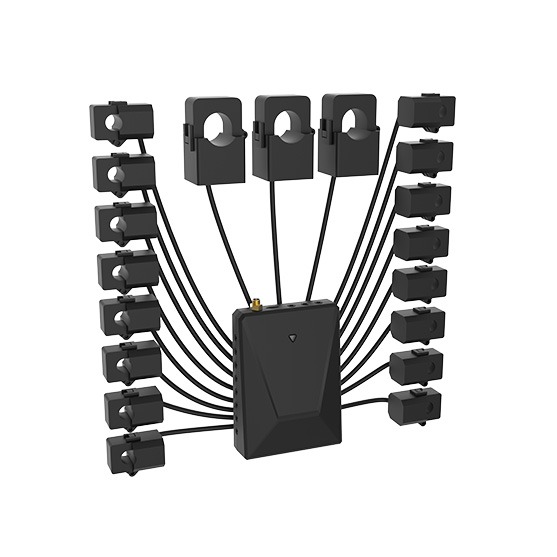

• PC341-3M16S Multi-Circuit Monitors — one unit monitors up to 16 machines
• PC321-TY Smart Meters — for main feeder monitoring
• EdgeEco IoT Platform — enterprise analytics and reporting

How It Works

1. Per-Machine Monitoring — PC341 sub-CTs clamp onto individual machine circuits
2. MQTT Data Stream — real-time energy data published to MQTT broker
3. SCADA Integration — MQTT data consumed by existing industrial control systems
4. EdgeEco Analytics — trend analysis, anomaly detection, cost allocation by machine

Architecture

[Topology Diagram: Production Line Machines → PC341 CT clamps → MQTT Broker → SCADA/BMS + EdgeEco Cloud Analytics]
